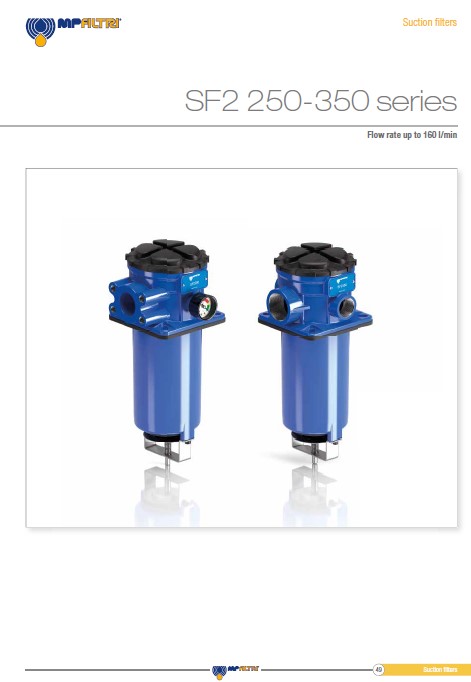

Semi-submerged positive head suction filter, tank side or bottom mounting, multi-port options. Flow rates up to 160 l/min (43 gpm), threaded connections up to 1 1/2” BSP/NPT/SAE and SAE code 61 flanged connections up to 1 1/2".
Features an anti-drain valve allowing filter element change without draining the tank. An optional magnetic column captures ferrous particles and flexibility with multi-port supply.
See the relevant table for fluid compatibility.
